CONNECTING ROD TRX420/500 AT-09409 HONDA ATV
CONNECTING ROD TRX420/500 AT-09409 HONDA ATV is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment information not available for this product.
Collapsible content
Collapsible content
Add your content here
Description
Description
ATV (HONDA)
2014-16 TRX420FA1,
2014-17 TRX420FA2,
2015-18 TRX420FA5/FA6,
2007-13 TRX420FE/FM/FPE/FPM/TE,
2014-18 TRX420FE1,
2014-18 TRX420FM1/FM2,
2014-16 TRX420TE1,
2014-18 TRX420TM1,
2012-13 TRX500FE/FM/FPE/FPM,
2014-16 TRX500FE1,
2014-18 TRX500FE2,
2014-18 TRX500FM1/FM2,
2015-18 TRX500FM5/FM6,
2015-17 TRX500FM7,
UTV (HONDA)
2015-17 SXS500 PIONEER,

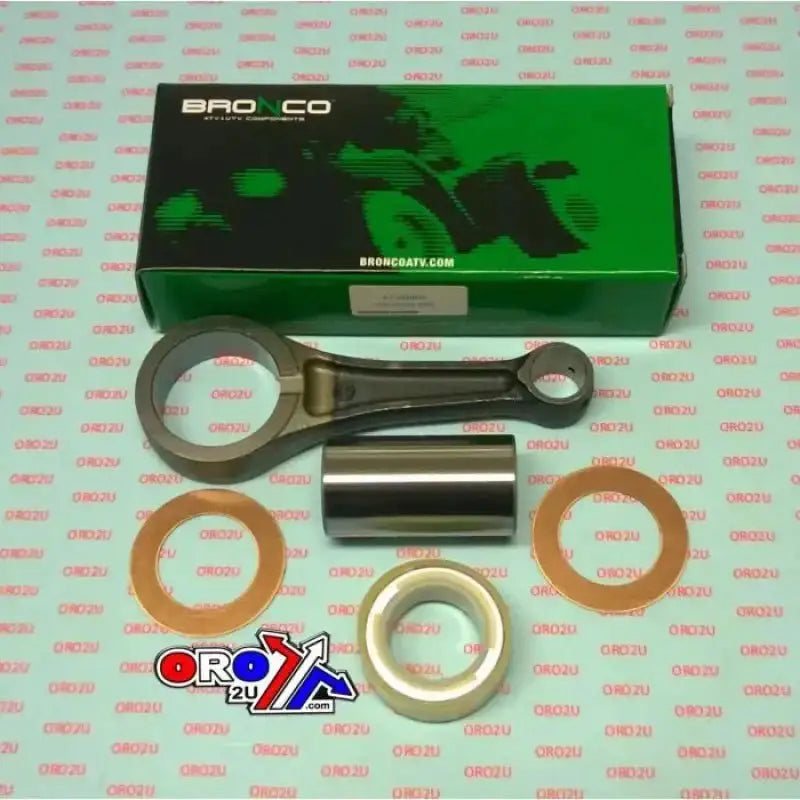

CONNECTING ROD REBUILD KIT BRONCO AT-09409
SIZE.
TOP EYE DIA. 19mm.
BOTTOM EYE DIA. 44mm.
Center-Center 118mm.
Rod width 20/20mm.
Bottom Pin Dia. 34 X L 63.55.
Big End Bearing 34x52.8x0.9
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

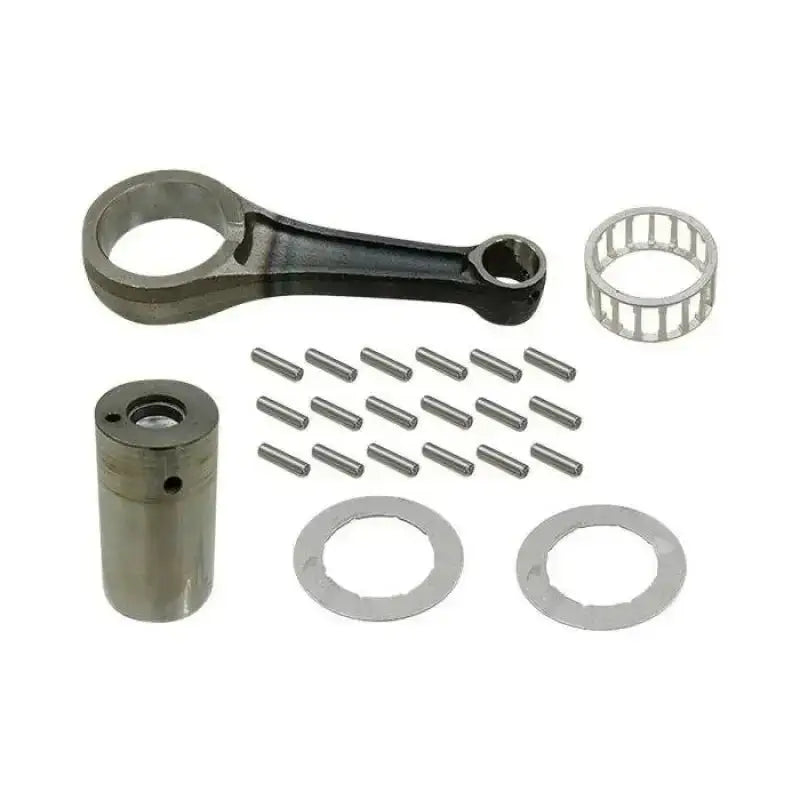

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SCM415,
Part No. 56-0356.BR (oro2u.com)
Cross reference numbers ONLY.
13000-HR0-F00, 13000-HR3-A40, 13000-HR3-A60,
HONDA ATV
TRX420FA1 2014-16
TRX420FA2 2014-18
TRX420FA5/FA6 2015-18
TRX420FE/FM/FPE/FPM/TE 2007-13 TRX420FE1 2014-18 TRX420FM1/FM2 2014-18
TRX420TE1 2014-16
TRX420TM1 2014-18
TRX500FE/FM/FPE/FPM 2012-13
TRX500FE1 2014-16
TRX500FE2 2014-18
TRX500FM1/FM2 2014-18
TRX500FM5/FM6 2015-18
TRX500FM7 2015-17
UTV
SXS500 PIONEER 2015-18
