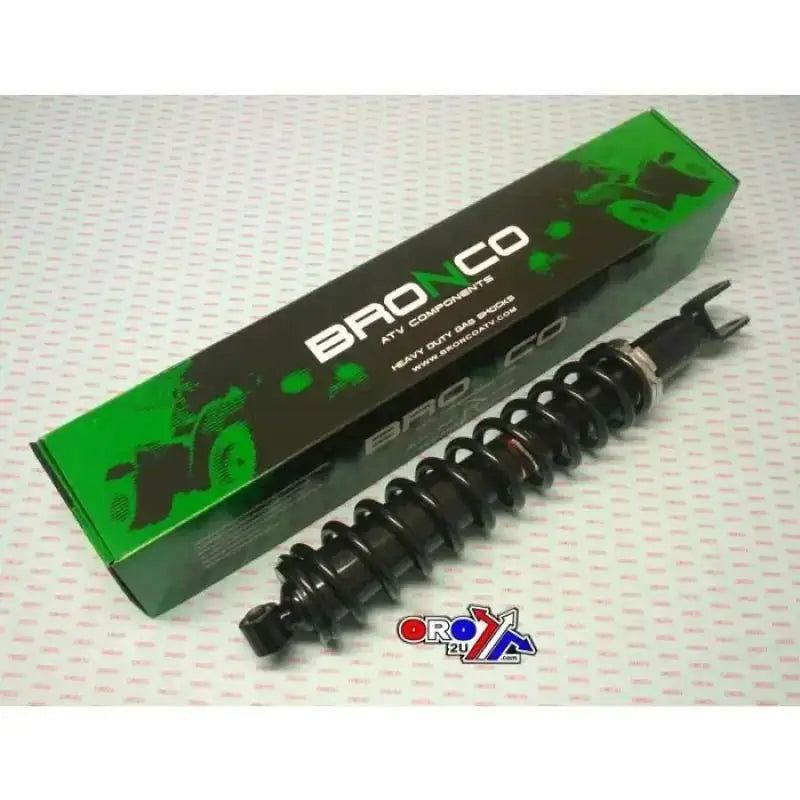

SHOCK REAR HONDA TRX 420 500 520 14+

BRONCO HEAVY DUTY GAS SHOCKS   AU-04463

Fits ATV Models:Bronco gas shocks offer long term consistent performance over stock oil only damped shocks
10% stiffer springs provide a better ride and higher load capacity
Works great on the front when installing a snow plow
Smooth black color blends perfectly with any OEM ATV
Direct bolt-on replacement: pre-installed spring allows for shock to be ready to mount right out of the box
Sold individually - Includes one shock, with spring, and spring retainers

 HONDA FITMENT:

• TRX420FA1/FE1/FM1/TE1 RANCHER 2014-20
• TRX420FA5/FA6 RANCHER 2015-19
• TRX500FE1/FM1 FOREMAN 2014-19
• TRX500FE2/FM2 FOREMAN 2014-19
• TRX520FE2 FOREMAN 2020
• TRX520FM1/FM2 FOREMAN 2020

SPECIFICATIONS

• POSITION TOP HOLE I.D MM: 10
• TOP EYELET WIDTH MM: 32
• BOTTOM HOLE I.D MM: 12
• BOTTOM EYELET WIDTH MM: 33
• TUBE O.D MM: 42
• STROKE MM: -
• SPRING OD MM: 77
• SPRING WIRE DIAMETER MM: 9
• SPRING RATE LBS/INCH: -
• SPRING RATE KG/MM: -
• CENTER TO CENTER MM: 478
• CENTER TO CENTER IN: 18 5/6

Cross Refrence Numbers ONLY: 52400-HR3-A21, 52400-HR4-A21
